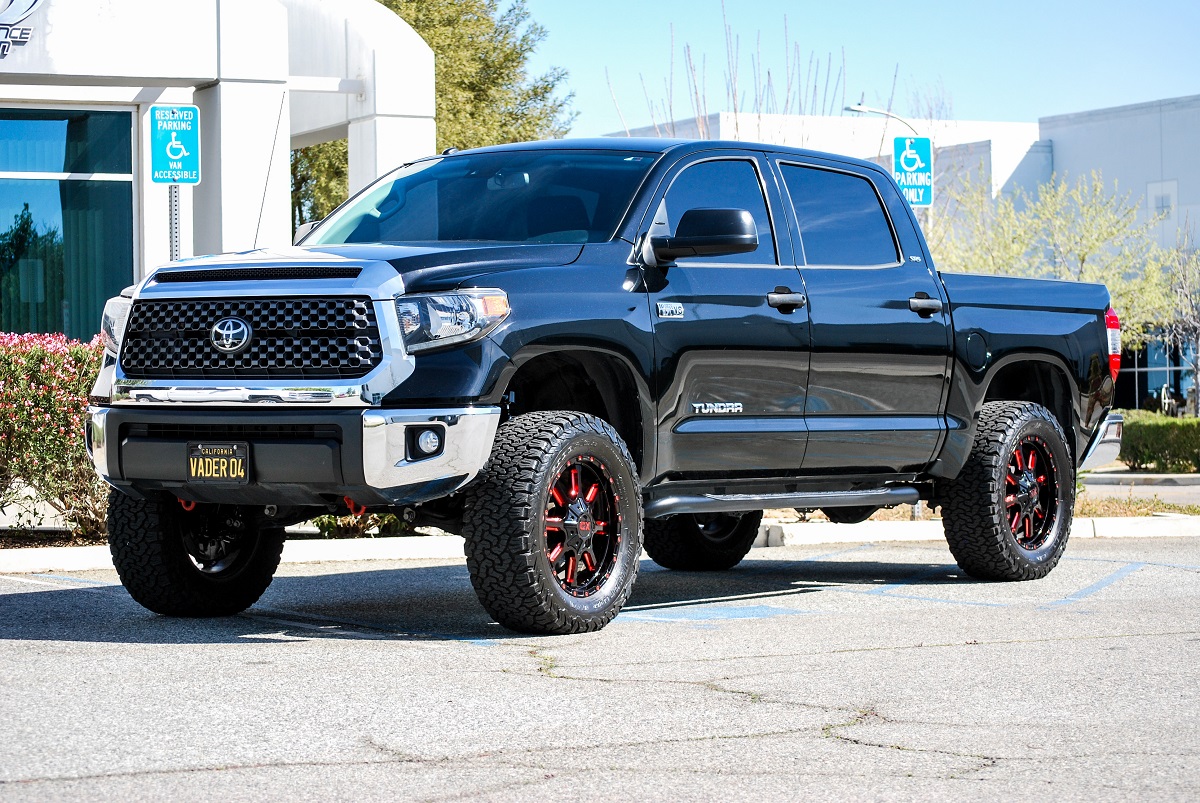

2007-2021 Toyota Tundra 2WD CST Suspension Stage 4 Lift Kit (3.5" Front 1" Rear Lift)
If you're looking for a performance lift for your truck, but want it to still be able to be a daily driver, you've found the right kit. This CST Suspension lift kit lifts the front of your truck 3.5" with fabricated lift spindles. Brake line relocation brackets are included
This front lift is combined with 1" rear lift blocks and extended length u-bolts. CST Pro Series 2.5 Remote Reservoir Rear Emulsion Shocks are also included. Because the Tundra sits nose low from the factory, this levels out the truck.
All necessary hardware and installation instructions are included.
If you're worried about ride quality, don't be. Your truck will maintain its ride quality after being lifted with this kit.
The part number for this item is CSK-T4-4 and it fits 2007-2021 Toyota Tundra 2WD models.
CST Suspension offers the following tire/wheel advise for this kit:
285 / 75 / 16 ON 8 OR 9” WIDE WHEELS
285 / 70 / 17 ON 8 OR 9” WIDE WHEELS
33” x12.5” OR SIMILAR ON 8” WIDE WHEELS
33” x12.5” ON 9” WIDE WHEELS (TRIMMING REQUIRED)
4.75″ MAX BACK-SPACING TEST FIT 18″ OR LARGER WHEELS ABOVE 4.75 INCHES OF BACK-SPACING!
ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 4.75”
CSS-T1-4 3.5" LIFT SPINDLE KIT 1
CSB-C14-1 FABRICATED 1" BLOCK 1
CSU-C15-8.5 U-BOLT KIT 1
CSA-7526 PRO SERIES 2.5" REMOTE RESERVOIR REAR SHOCKS 1-2" LIFT 1
